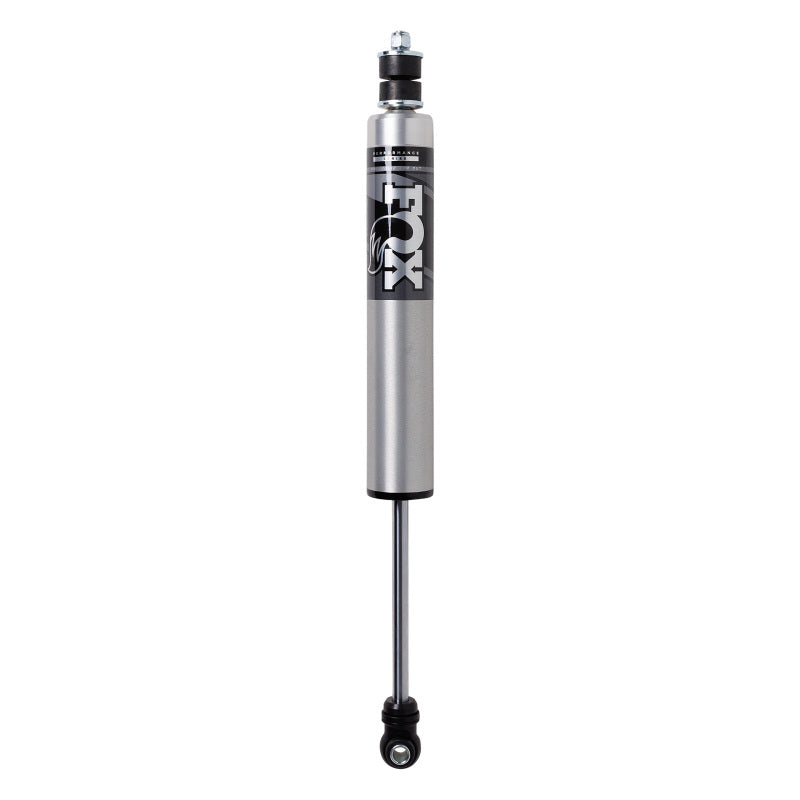

Fox 14+ Ram 2500 / 13+ Ram 3500 2-3in Lift Front 2.5 Perf. Series IFP HTO Shock

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2014-2024	Ram	2500	Big Horn
2014-2024	Ram	2500	Laramie
2014-2015	Ram	2500	Laramie Limited
2014-2021	Ram	2500	Laramie Longhorn
2016-2024	Ram	2500	Limited
2021-2024	Ram	2500	Limited Longhorn
2014-2015,2019-2024	Ram	2500	Lone Star
2014-2016	Ram	2500	Outdoorsman
2014-2024	Ram	2500	Power Wagon
2023-2024	Ram	2500	Rebel
2014-2018	Ram	2500	SLT
2024	Ram	2500	Special Service
2014-2024	Ram	2500	Tradesman
2014-2024	Ram	3500	Big Horn
2014-2024	Ram	3500	Laramie
2014-2015	Ram	3500	Laramie Limited
2014-2020	Ram	3500	Laramie Longhorn
2016-2024	Ram	3500	Limited
2021-2024	Ram	3500	Limited Longhorn
2014-2015,2017,2019-2022	Ram	3500	Lone Star
2014-2024	Ram	3500	SLT
2024	Ram	3500	Special Service
2014-2024	Ram	3500	Tradesman
